Tube Manipulation.

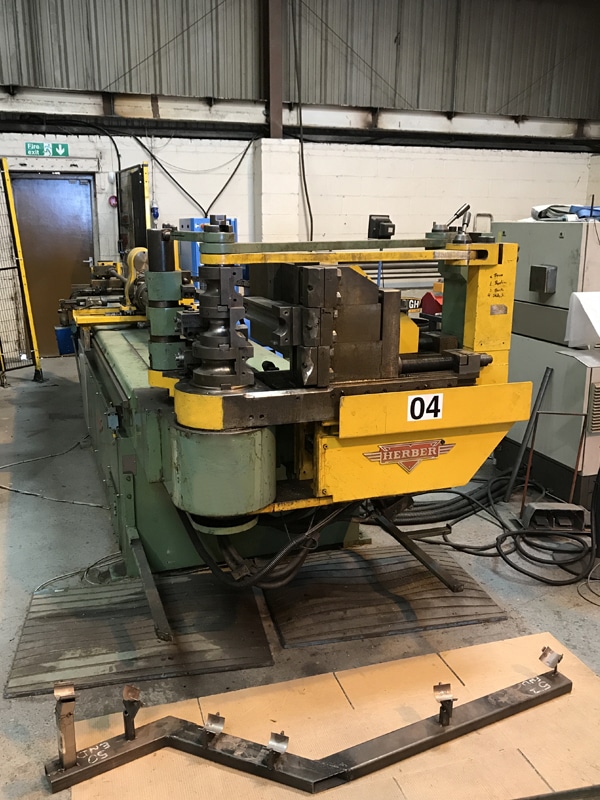

The Wasey Manufacturing wide range of tube bending sizes gives you a solution to solve your standard diameter tube manipulation requirements. Capacities on our Mandrel bending on CNC machines range from 31.75mm o.d up to 127mm o.d.
When designing your product, it is always better to opt for a “standard” tube diameter. The rigid steel tubing (RST) supply on these sizes is generally widely available and much more cost effective than bespoke tube diameters. Also the bend tooling is already used on our machines, avoiding you tooling costs which is very expensive. Another plus is that any sampling or prototyping is speeded up. We also have a roll bending capability.
Contact Us

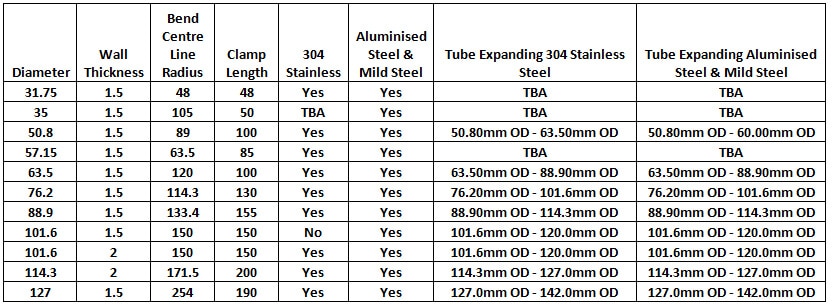

Our Tube Manipulation Capacities:
| Diameter (Metric) | Diameter (Imperial) | Wall Thickness | Bend Centre Line Radius | Clamp Length | 304 Stainless Steel | Aluminised Mild Steel | Tube Expanding 304 Stainless Steel | Tube Expanding Aluminised Steel & Mild Steel |
|---|---|---|---|---|---|---|---|---|
| 31.75 | 1 1/4″ | 1.5 | 48 | 48 | Yes | Yes | TBA | TBA |
| 35 | 1 3/8″ | 1.5 | 105 | 50 | TBA | Yes | TBA | TBA |
| 50.8 | 2″ | 1.5 | 89 | 100 | Yes | Yes | 50.80mm OD – 63.50mm OD | 50.80mm OD – 60.00mm OD |
| 57.15 | 2 1/4″ | 1.5 | 63.5 | 85 | Yes | Yes | TBA | TBA |
| 63.5 | 2 1/2″ | 1.5 | 120 | 100 | Yes | Yes | 63.50mm OD – 88.90mm OD | 63.50mm OD – 88.90mm OD |
| 76.2 | 3″ | 1.5 | 114.3 | 130 | Yes | Yes | 76.20mm OD – 101.6mm OD | 76.20mm OD – 101.6mm OD |
| 88.9 | 3 1/2″ | 1.5 | 133.4 | 155 | Yes | Yes | 88.90mm OD – 114.3mm OD | 88.90mm OD – 114.3mm OD |
| 101.6 | 4″ | 1.5 | 150 | 150 | No | Yes | 101.6mm OD – 120.0mm OD | 101.6mm OD – 120.0mm OD |
| 101.6 | 4″ | 2 | 150 | 150 | Yes | Yes | 101.6mm OD – 120.0mm OD | 101.6mm OD – 120.0mm OD |
| 114.3 | 4 1/2″ | 2 | 171.5 | 200 | Yes | Yes | 114.3mm OD – 127.0mm OD | 114.3mm OD – 127.0mm OD |
| 127 | 5″ | 1.5 | 254 | 190 | Yes | Yes | 127.0mm OD – 142.0mm OD | 127.0mm OD – 142.0mm OD |

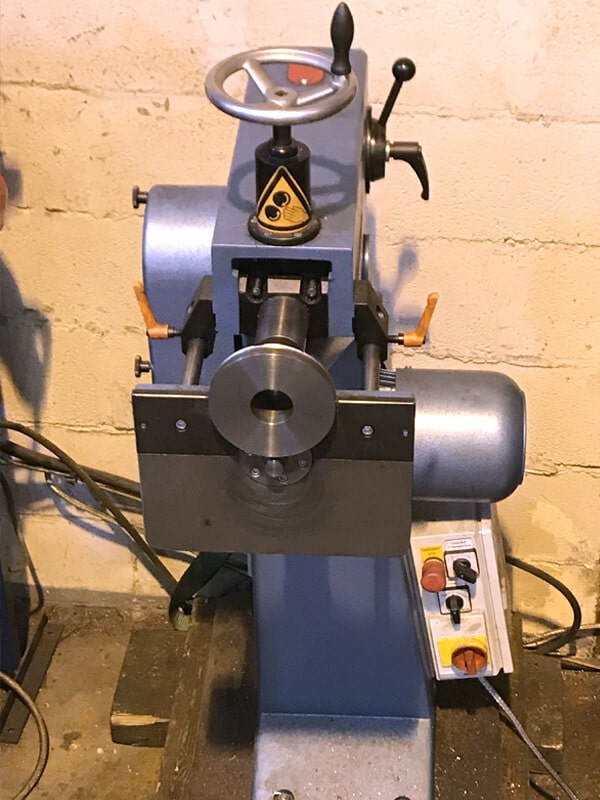

Tube Beading
Wasey Manufacturing have a variety of tube beading machines, giving us the capability to complete this type of bend work by creating a retaining bead or flange on water and oil pipes to prevent the hose from coming free.
Contact Us

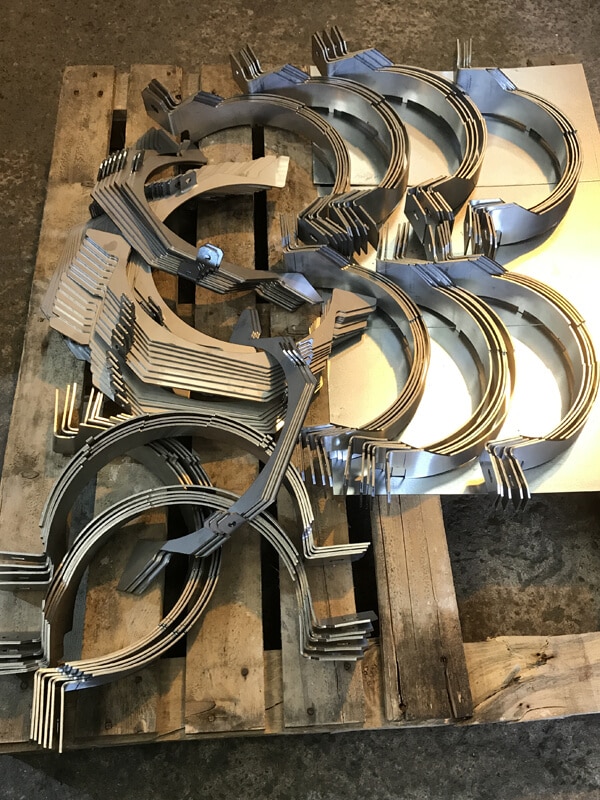

Flat Plate Metal Forming
As part of the fabrication process we are able to supply the formed metal parts which are used in the final product.
Contact Us
Welding & Metal Fabrication
Our skilled craftsmen are able to take on all types of fabricating projects, from one off bespoke items, to large scale production orders.
We ensure that only the highest quality finishing processes are employed. Working to your own designs, we provide you with your light fabrications tailored to suit your requirements. We can also provide advice or guidance where needed to ensure that the design and finished product is as functional and economical as possible.
Contact Us
Product Development

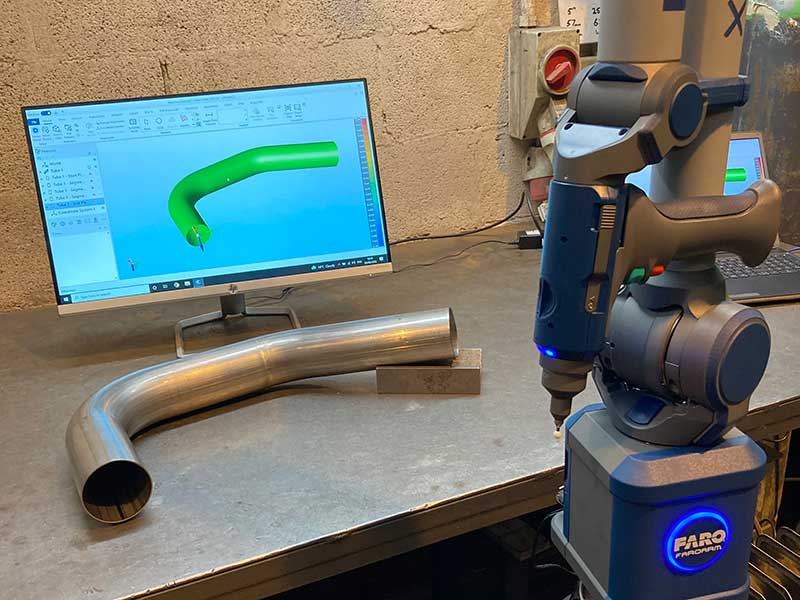

Wasey Manufacturing benefits from being able to use advanced technology to measure and inspect tube sections and fabrications to a high accuracy. To do this Wasey Manufacturing use the latest FARO ARM technology equipment recently sourced in 2022. The Faro arm and associated CAD software is also employed to develop new products for our customers by way of Reverse Engineering a physical sample or working to a customer drawing.
Contact Us

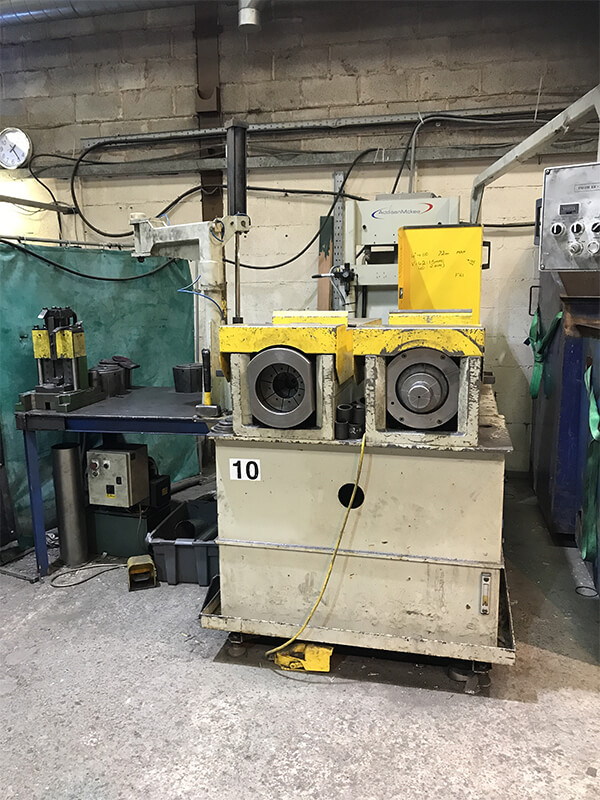

Expansion and Reduction of Tube .
All standard tube sizes can be expanded or reduced to customer requirements. Tube flared ends and notching also available.
Contact Us
